TECH: Simple 365 trusted device authentication strategy for Windows+MacOS+Mobile

Introduction

The scope and goal of this blog is to check the box in the simplest way possible that only Entra devices (at any level) can authenticate to 365. The easiest way to do that is to target Entra Registered as our goal post so that's what this blog will describe.

Keep in mind that the Conditional Access Policy and the exclusion group outlined here are still the same methods you would use for full Entra Joined, but maybe you'd take out Entra Registered as an acceptable option on the Conditional Access policy. Up to you!

By the end of this blog you will be able to successfully limit Windows, MacOS, and (optionally) Mobile devices to only login if they are registered in Entra, complete with a step-by-step of how to get there, notes about implementation to make sure you don't lock yourself out, caveats of implementation, and a simple method to drastically reduce the risk of mobile device authentication in case you can't go full Entra Registered on the mobile side right away.

What this accomplishes

This will prevent token theft via man in the middle attacks for the users you have this applied to by enforcing a Conditional Access Policy that only allows authentication from proven, known machines, in addition to your other authentication methods already in place. This will not prevent token replay attacks, but this is a strong first step in improving your Entra Conditional Access strategy to prevent the most common and simple attack your users will experience.

This means after we add the steps in this blog, you should ideally have at least three requirements for successful authentication:

Password
MFA
Trusted device

Step 1: Exclusion group

If our Conditional Access Policy is created and applied to all users, this means that users that have not yet Entra Registered their devices will be blocked from sign-in. This means we need to ensure users successfully Entra Register their devices before enforcing this new conditional access policy across the board.

Additionally, as we add new users to the organization, or as users get new devices, those new devices will all need to be Entra Registered before they can sign-in. But now, we have a bit of a chicken and the egg scenario... how do we allow users to sign-in to new devices before they're Entra Registered if we know the sign-in will be blocked if it's not Entra Registered?

For all scenarios above, there's two simple answers:

Have an excluded IT admin account for configuring new devices (which assumes you would have access to the device)
Make a new Security Group in Entra that we will name Onboarding to allow end-users to add their own devices if we don't have access to them.

Here is how that breaks down in steps:

Create a new security group named Onboarding in Entra here: All Entra Groups
1. If first time implementation of this Conditional Access Policy to an organization, add all users to this group
2. After first time implementation, so new users or new devices going forward, add new users to this group until they successfully Entra Register their device(s)
After any given user is confirmed to have their device(s) Entra Registered, remove them from the Onboarding group, which will now enforce our new Conditional Access Policy

**Note that when we actually create the Conditional Access Policy we will be excluding the Onboarding group which ties the above steps together

Step 2: Making our Conditional Access Policy

**IMPORTANT NOTE: If you enable this policy, any device that is not Entra registered, joined, or hybrid joined will now be blocked form sign-in. You can set this policy to "Report-Only" at first to see how many users would have been blocked, then work through those blocked users to ensure their devices are registered, joined, hybrid joined etc. Make sure to do this first so you don't disable everyone's ability to work!

Go here: Conditional Access Policies
Create a new Conditional Access Policy and name it Require Entra Managed Device
Apply the following settings in the Conditional Access Policy

Users
- Include
  - All users
- Exclude
  - Users and groups
    - Onboarding (new group we created)
    - Break glass account (so we can't get locked out!)
    - Onboarding admin account (used by techs to configure new machines)

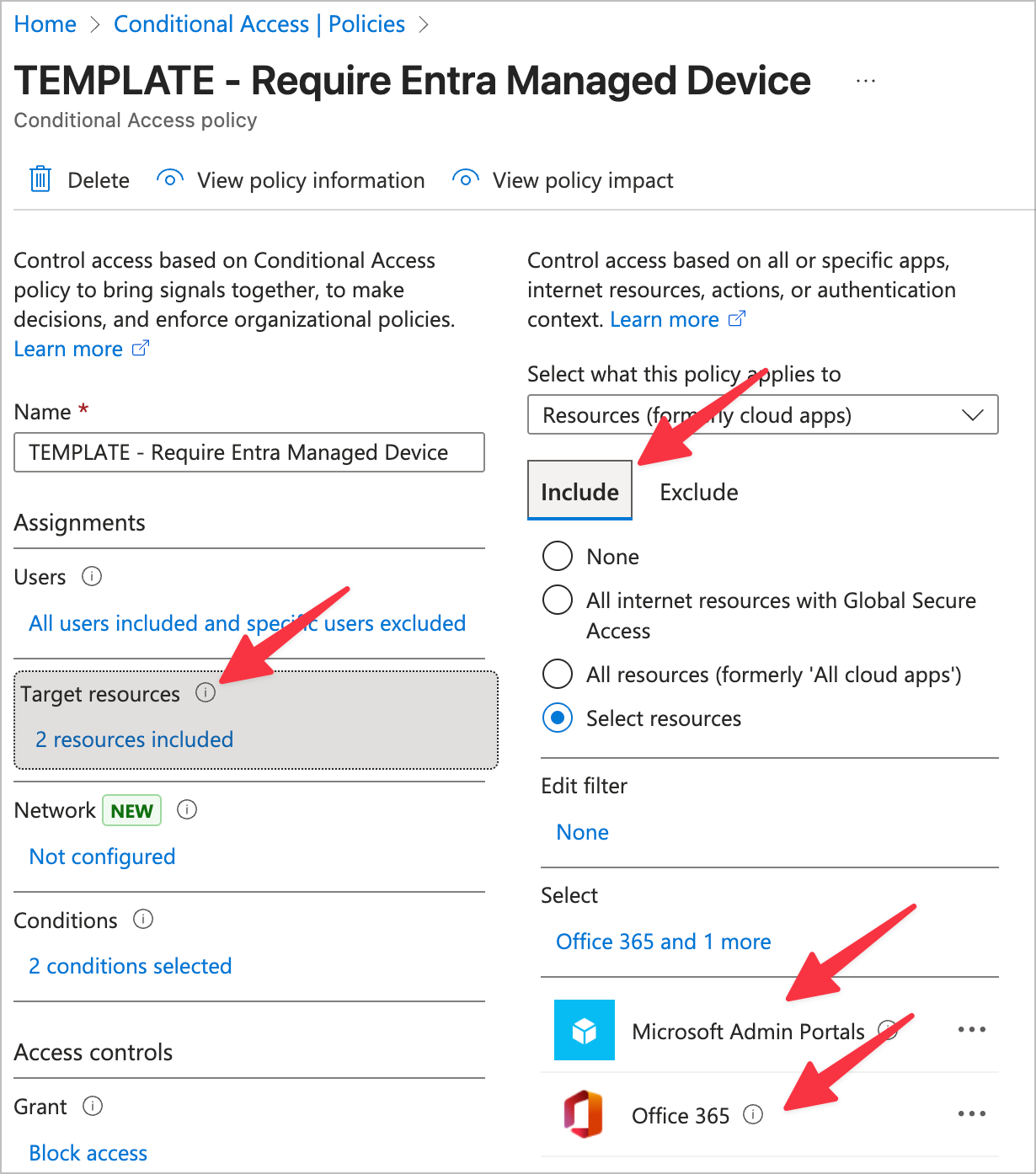

Target resources
- Include
  - Select Resources
    - Microsoft Admin Portals
    - Office 365

Exclude
- None

Conditions
- Device platforms
  - Configure: Yes
  - Include
    - Select device platforms
      - Any
- Filter for devices
  - Configure: Yes
  - Exclude filtered devices from policy
    - trustType = Microsoft Entra Joined
    - OR trustType = Microsoft Entra hybrid joined
    - OR trustType = Microsoft Entra registered

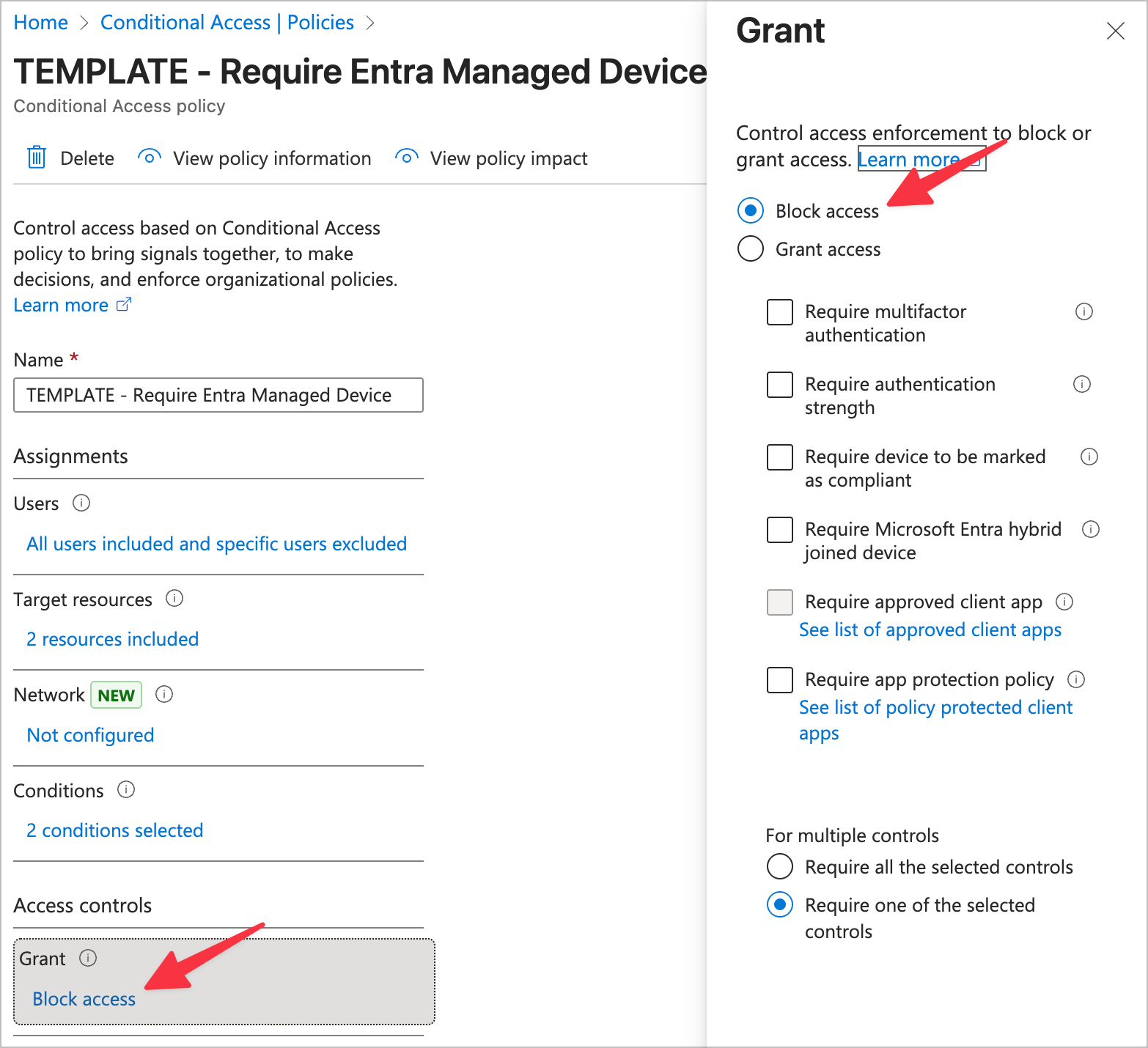

Grant
- Block access

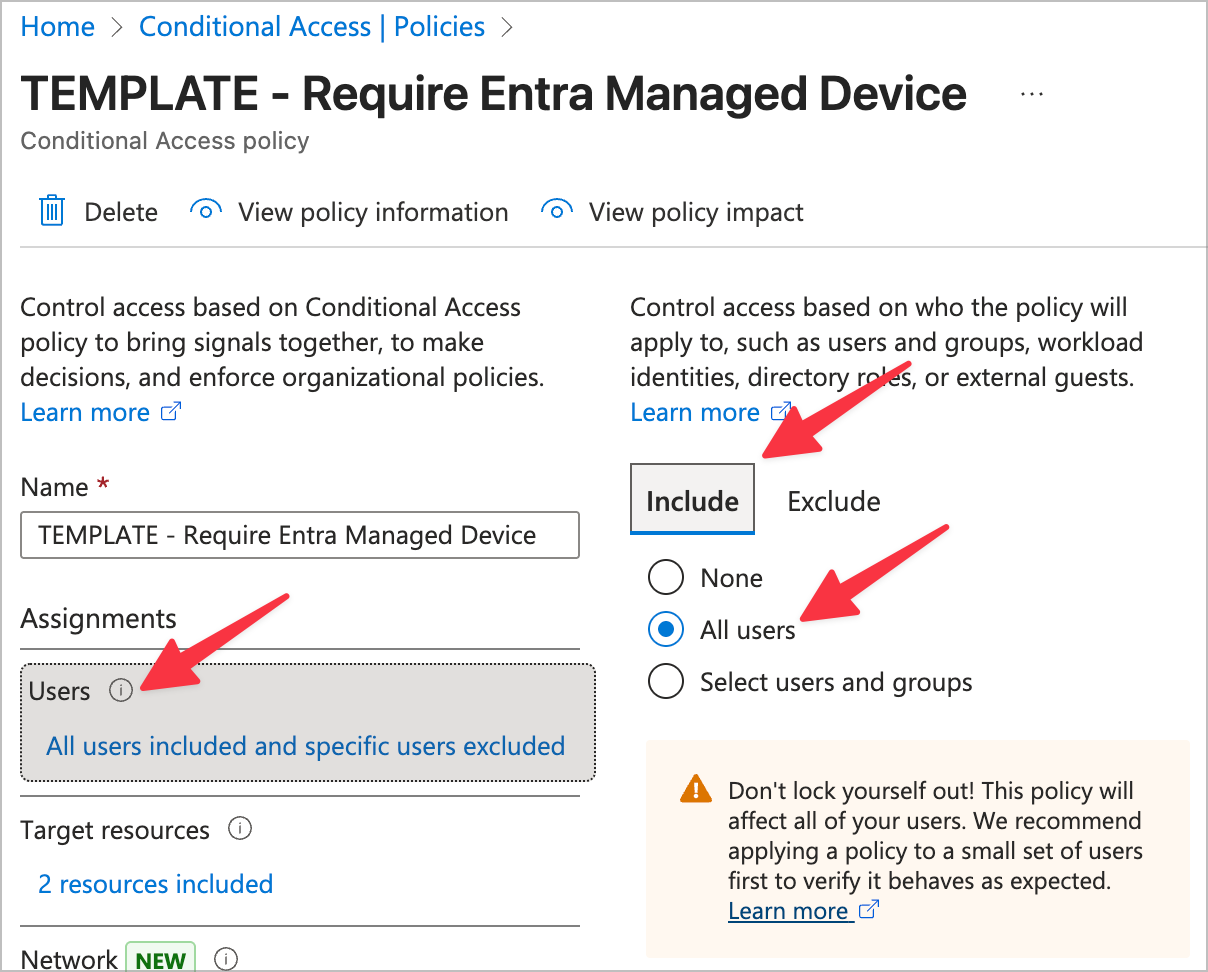

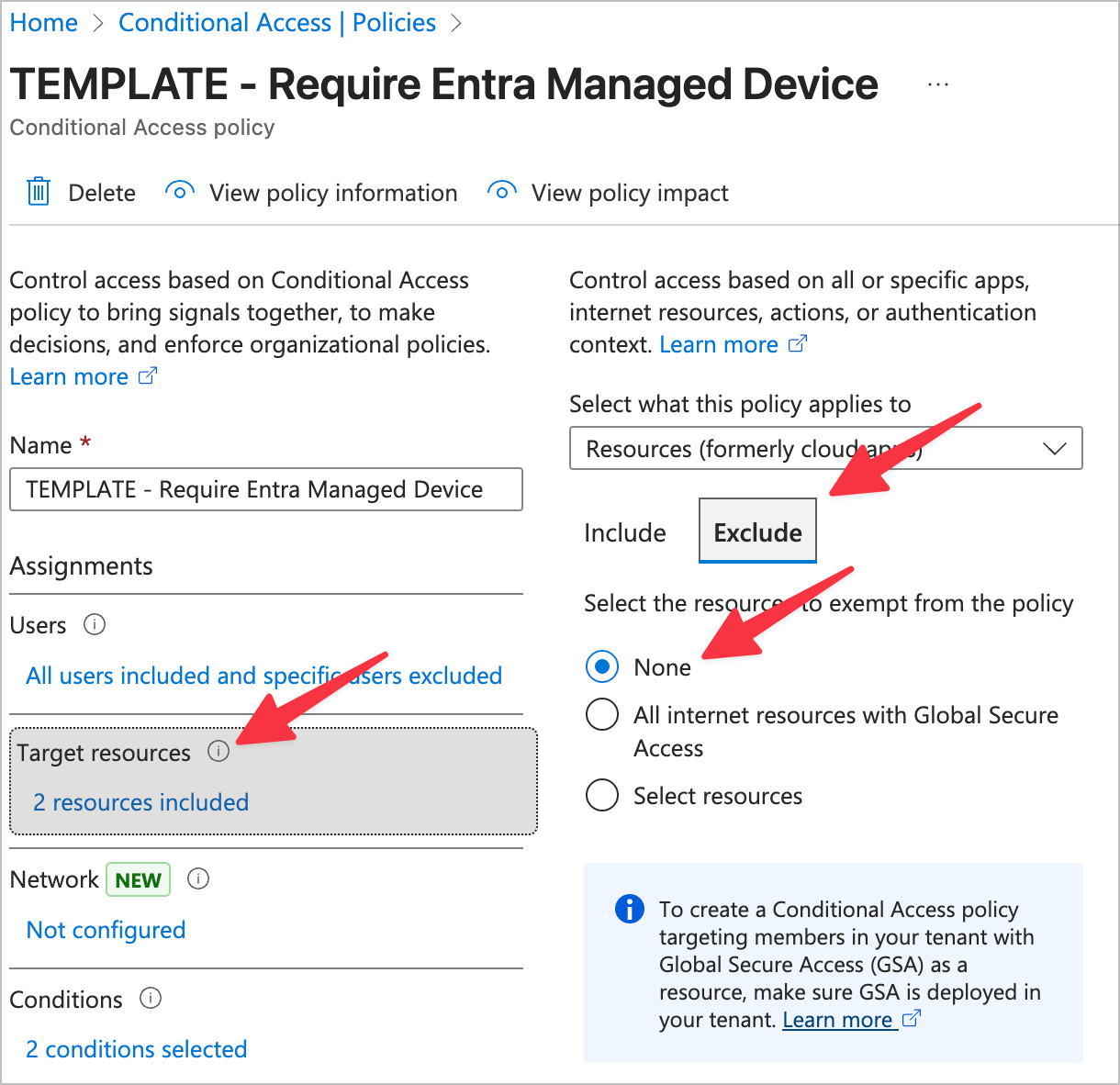

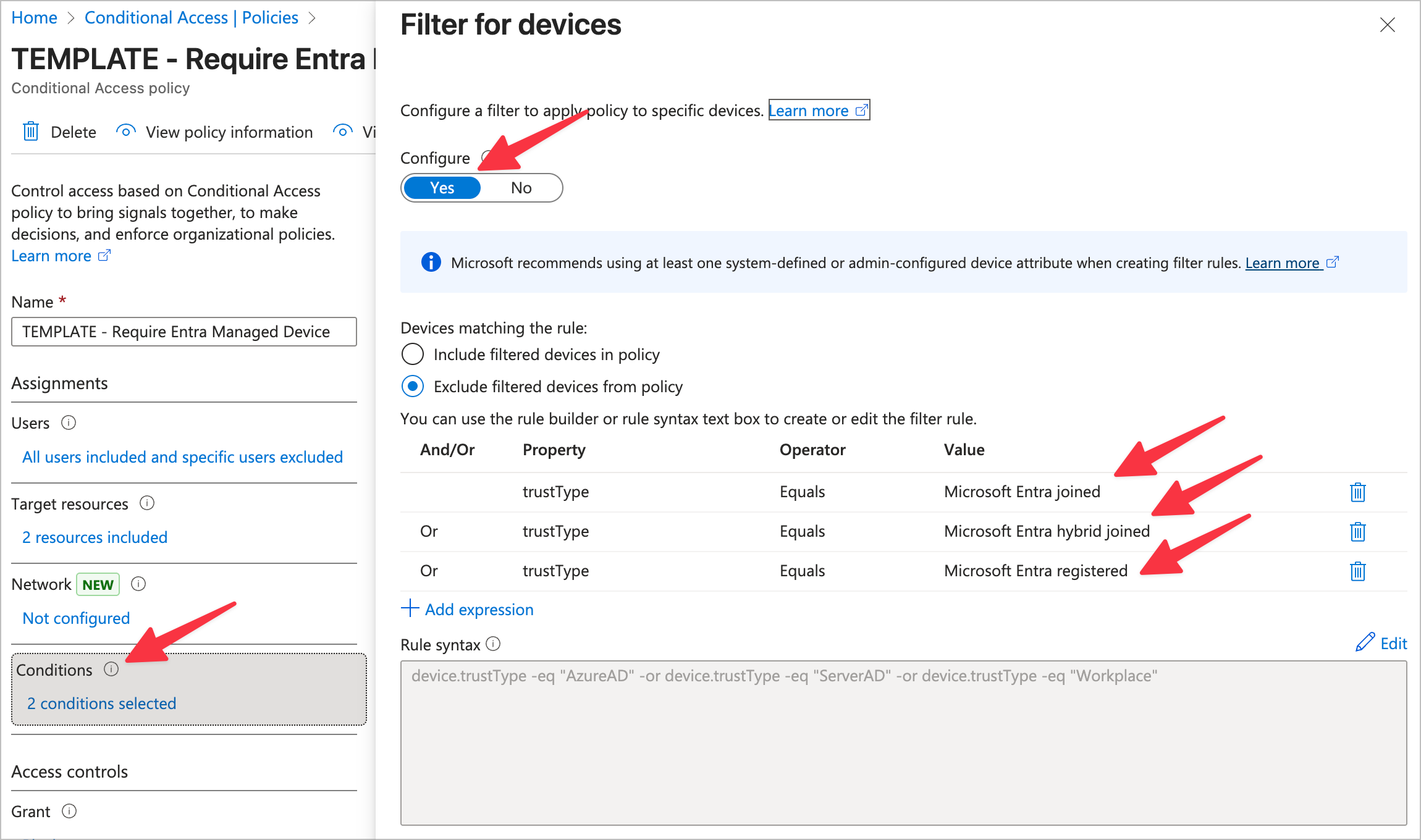

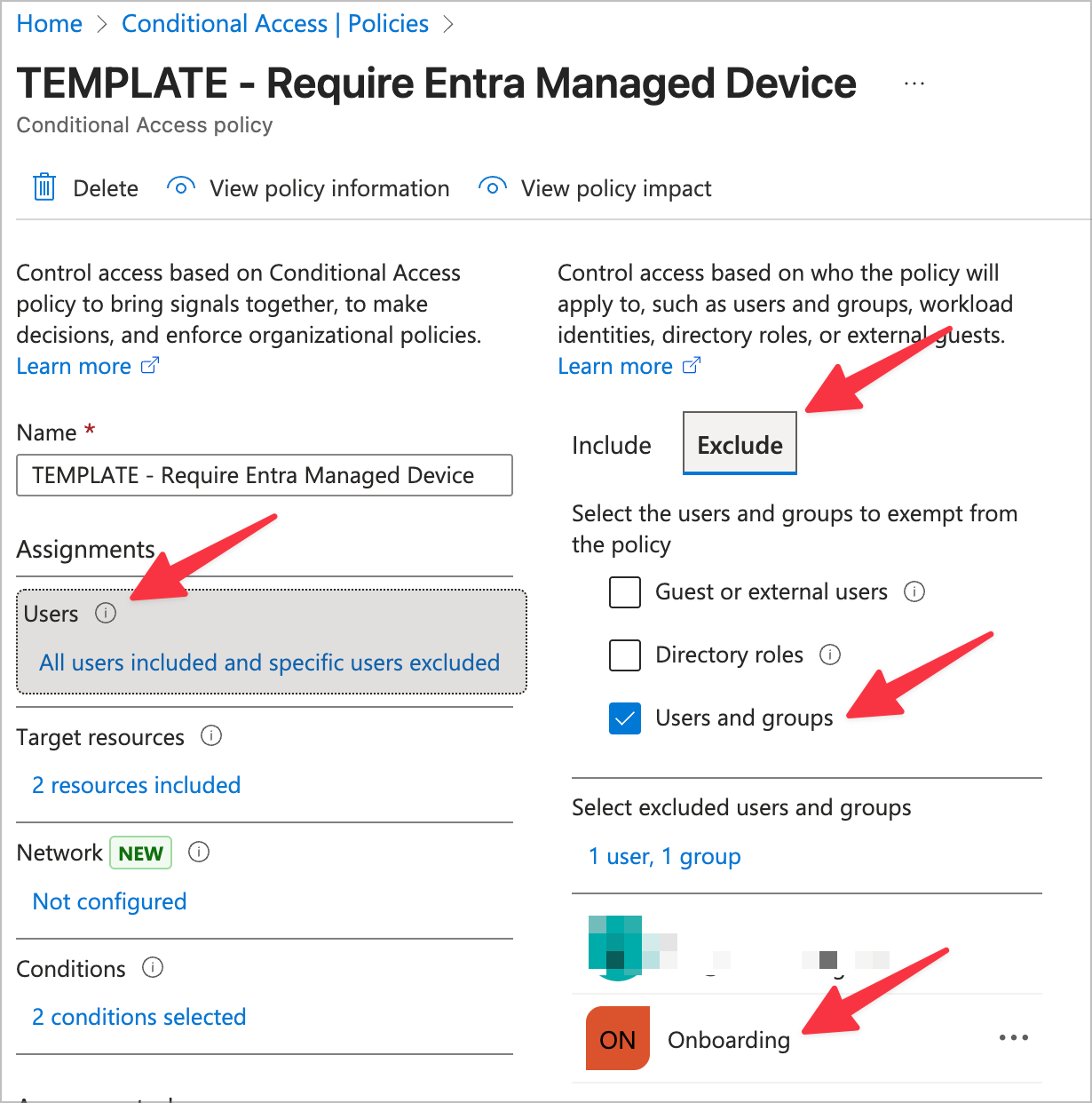

Here's some screenshots in case the text doesn't convey it well:

Note: Notice for Target Resources we chose "Microsoft Admin Portals" and "Office 365". These two cover all authentication scenarios via Entra, but we are purposefully not including general third party Enterprise Apps in this scope. This is because if we explicitly state which enterprise apps we will allow and which we will not, every time a user wants to authenticate a new service, we will have to go add it to the list. That's actually an incredibly positive and more secure configuration, but since the scope of this blog is the most simple, low impact strategy to get a third factor of authentication, I've opted to leave that out. Feel free to include Enterprise Apps by selecting "All Resources" if you want to take this security policy to the next level! After that, you'd add your approved Enterprise Apps to the Exclusions section.

Step 3: Entra Register devices

Windows

Keep in mind this will not allow us to manage this Windows machine, rather, only prove it's a trusted device. For this reason, this is a safe bet for even a BYOD device. If this was a company owned device it should be fully Entra Joined so it can be properly managed, but again, that is outside of the scope of this blog.

On the Windows machine perform the following steps:

Go to Settings
Go to Accounts
Choose Access work or school
Choose Connect
Enter the users work 365 credentials
Verify the device now shows in Devices at Entra Devices
Install the Microsoft Single Sign On extension on relevant client browsers which will allow the Microsoft session to passthrough to the browser and allow login: Microsoft Single Sign On Chromium Extension Download

Note there's a common issue here where you'll get an error if you have WIP set to All and it's not actually configured or in us. Go to Windows Information Protection (WIP) and set WIP to None and then try again

Note the browser extension is not required with the Microsoft Edge browser

MacOS

Keep in mind this will not allow us to manage this MacOS machine, rather, only prove it's a trusted device.

Install the Company Portal from Microsoft from here: Company Portal Download and then sign in with the users work 365 account. Now here is where there's a little trick..
1. If you just sign in and stop at the Install management profile step (as in, do not do that step and just exit), this Entra Registers the MacOS device.
2. If you continue, you will Entra Register the device, but you will also install the Intune MDM profile. This would make your MacOS device not on Entra Registered, but also "Managed" which can be used as another evaluation point in conditional access.
Verify the device now shows in Devices at Entra Devices

Note that once this is completed, the end-user should re-launch their browsers. Once they go to sign into 365 in the browser, they will see a prompt from Keychain to allow the certificate to be passed into that current session. Hit OK on that, and now the browser will be recognized as a browser being ran on their Entra Registered device, so the sign-in will be allowed under our new conditional access policy.

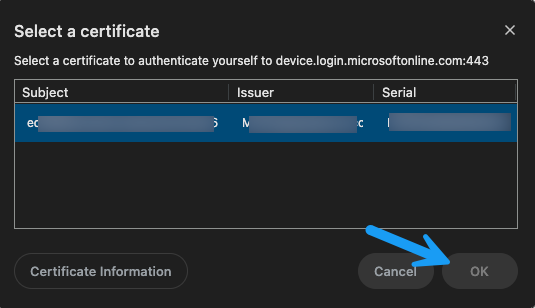

Keychain popup when logging into 365 from a browser after the Entra Registration process is completed, and the conditional access policy is in place.

(Optional) Mobile

Luckily this is simple for mobile if you're wanting to also enable the Entra Registered requirement for all mobile devices. The issue here though is often times mobile devices are a bit more difficult to get movement on to latest policy, so you may want to explore the less invasive first step of app authentication limitation. For now, let's cover the Entra Registration, and then we'll dive into the other method.

Download the Microsoft Authenticator app from the app store
Go to Settings in the Microsoft Authenticator app
Select Device Registration
Select Register device
Type in the appropriate user work 365 email
Select Register device
Verify the device now shows in Devices at Entra Devices

Note that if you do this, you'll need to update the Conditional Access Policy we created above to also include iOS, and Android for this to go to work.

Step 4: Mobile device limited authentication to Microsoft official apps

If you're just getting your feet wet in limiting the scope of what can authenticate to Microsoft Entra and how, I think a great first step for mobile is to limit what can authenticate from the phone instead of which phones can authenticate (just to start). This is no (or very little) impact to the end-users, but a nice security improvement.

Additionally, if you used the "Any device" on the CA above, I would still recommend using this. It's not immediately obvious, but what's happening on this policy is it's limiting mobile devices to only be allowed to login from Microsoft apps. I personally daily drive this and encourage all companies I work with to do the same.

Go here: Conditional Access Policies

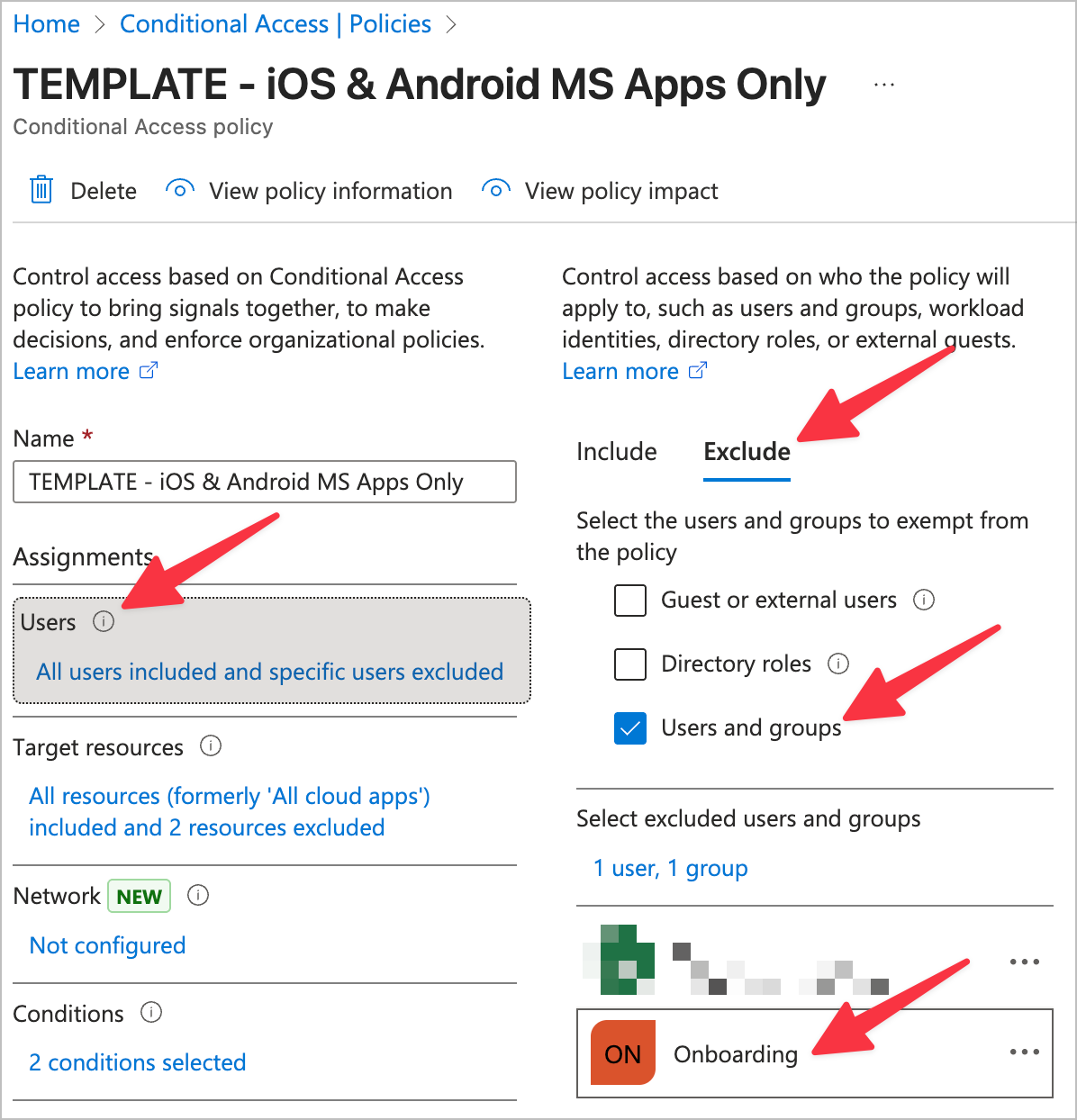

Create a new Conditional Access Policy and name it iOS & Android MS Apps Only
Apply the following settings in the Conditional Access Policy

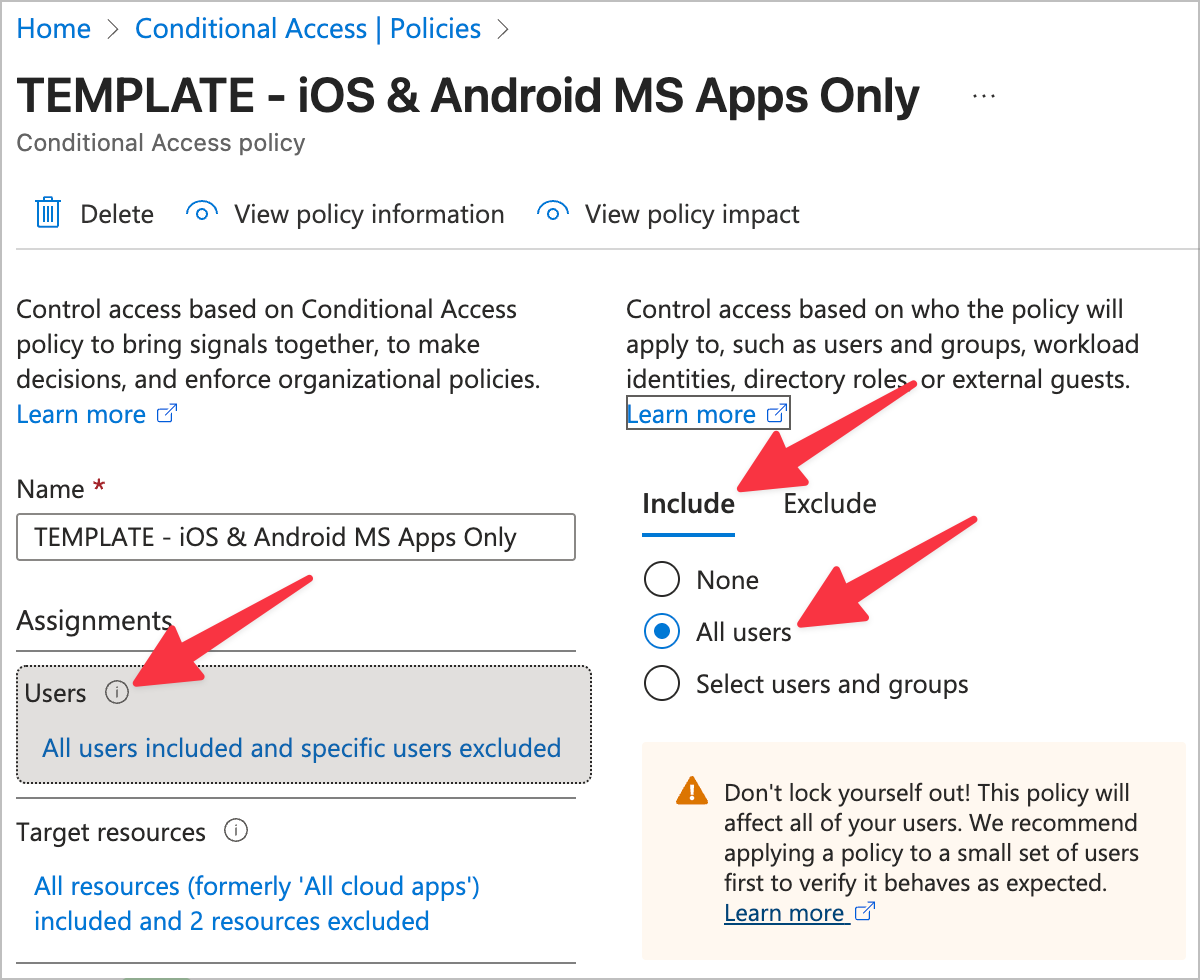

Users
- Include
  - All users

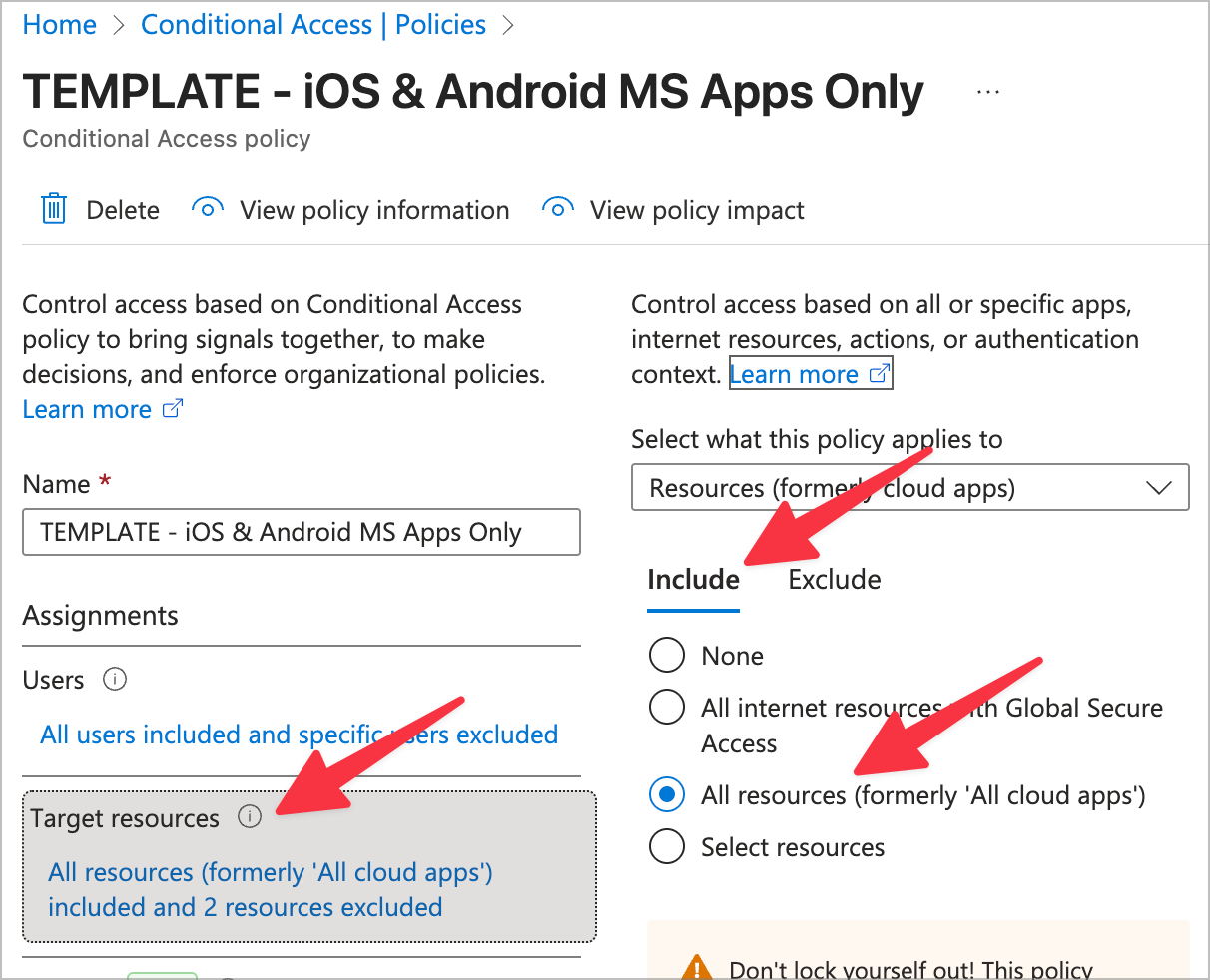

Target resources
- Include
  - All resources

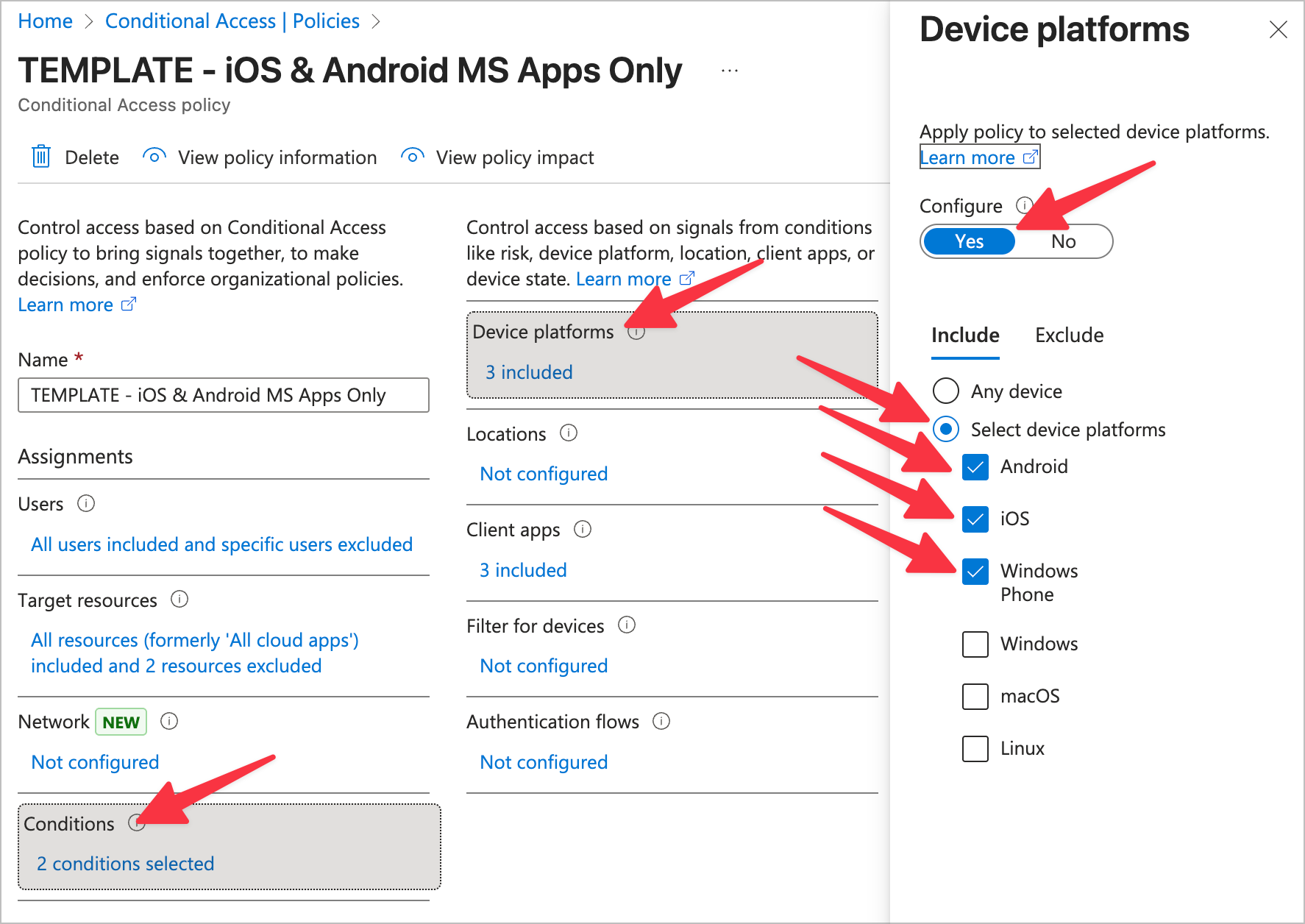

Conditions
- Device platforms
  - Configure: Yes
  - Include
    - Android
    - iOS
    - Windows Phone (lol)

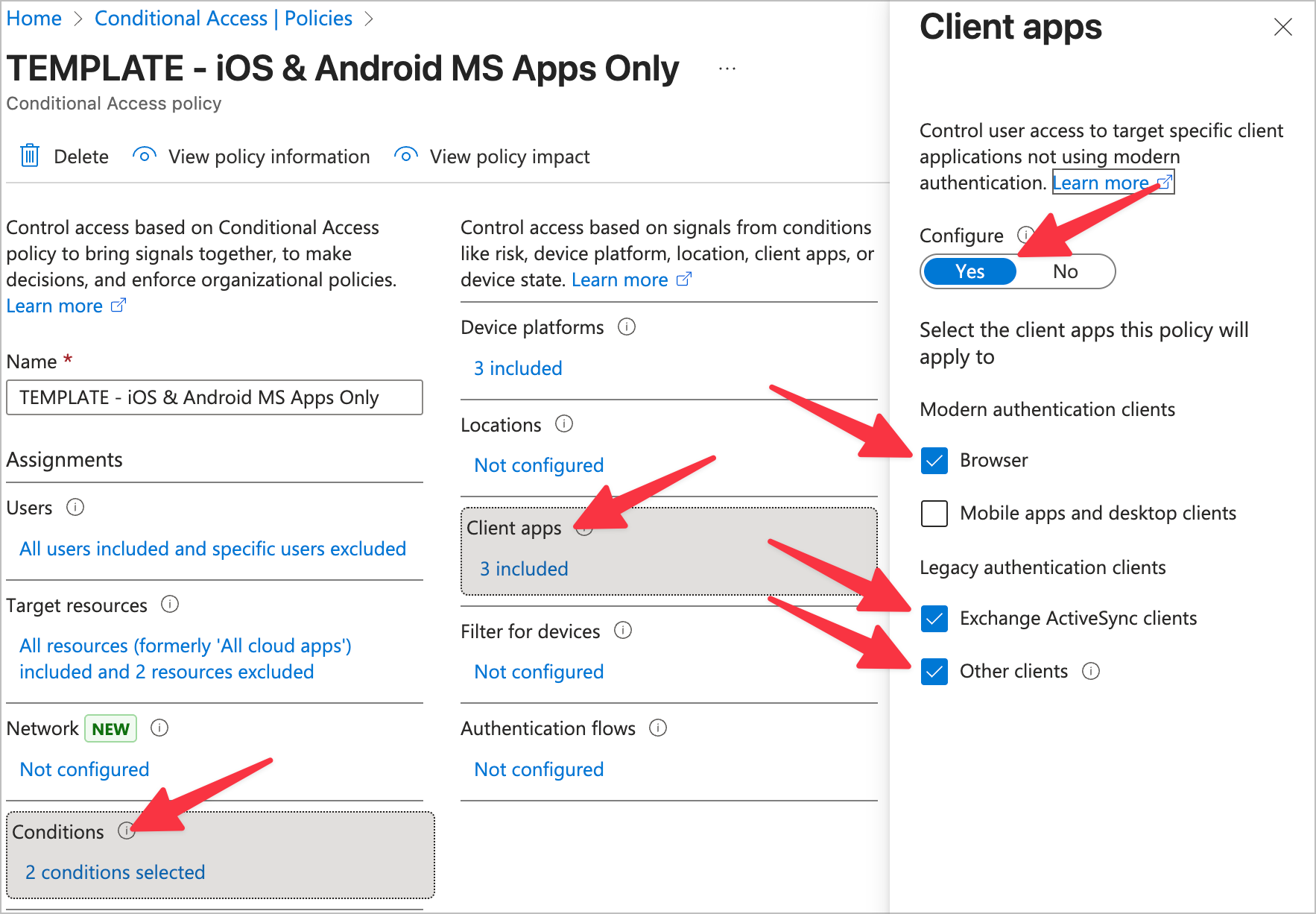

- Client apps
  - Configure: Yes
  - Browser
  - Exchange ActiveSync clients
  - Other clients

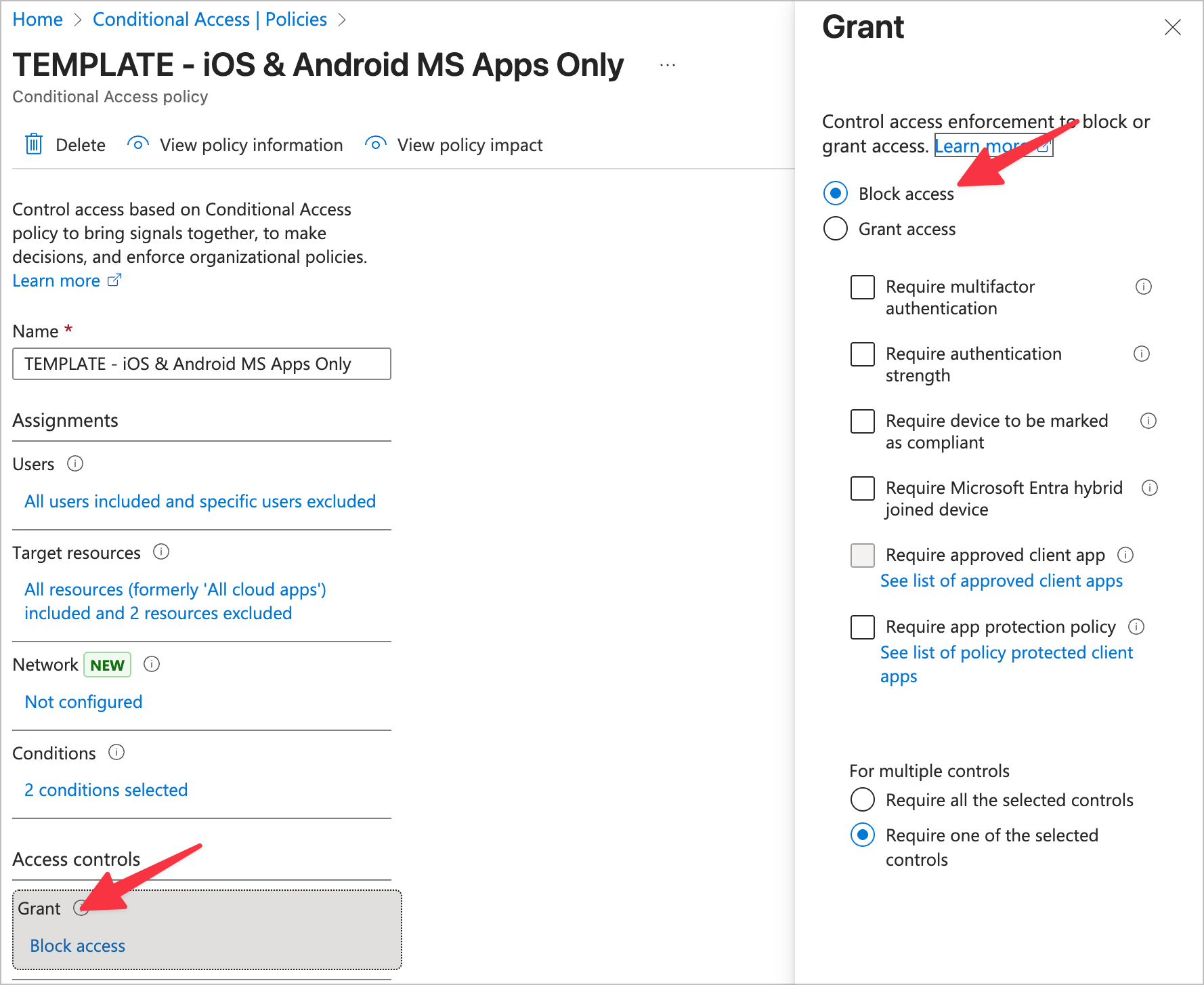

Grant
- Block access
